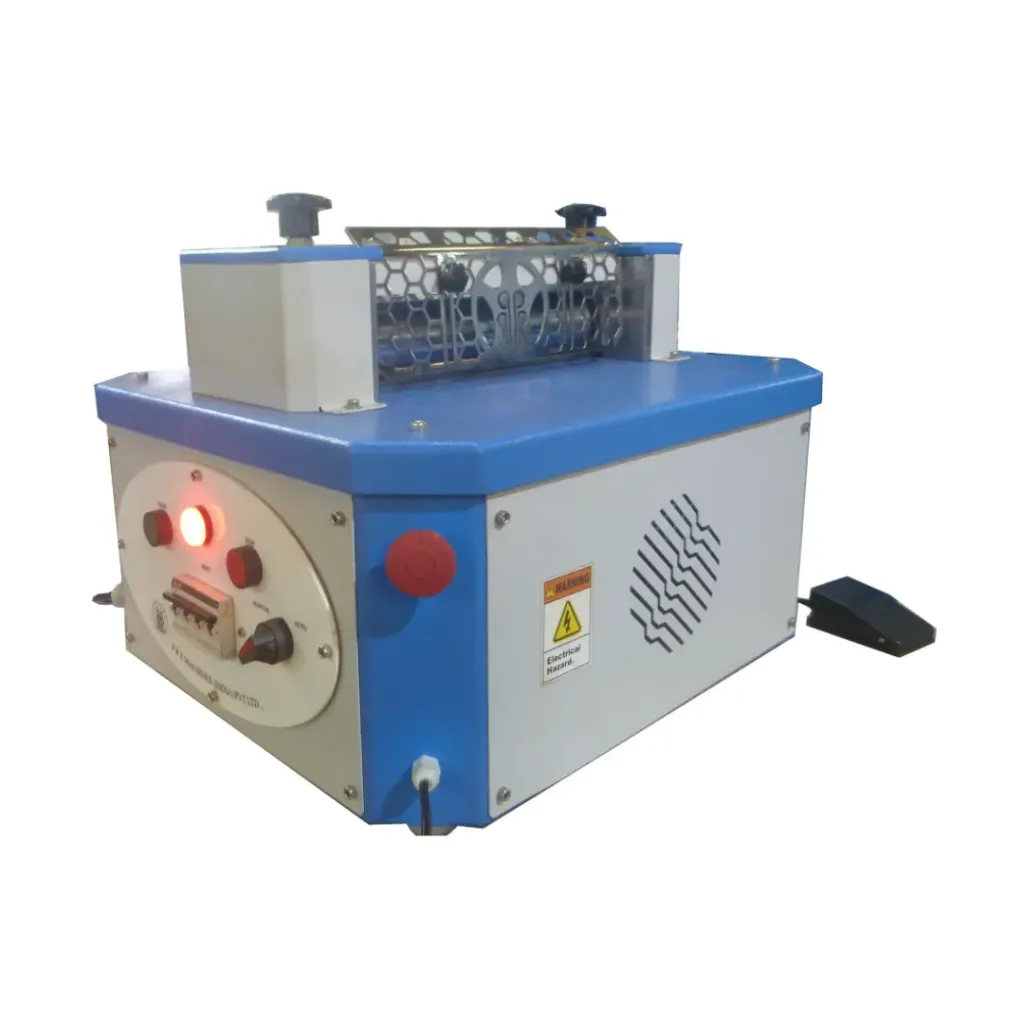

Hot Roller Press

The Hot Roller Press is a specialized thermal pressing machine designed for footwear upper manufacturing and leather component processing. The machine combines controlled heat and pressure to bond upper and lining materials effectively, eliminate air pockets, and flatten leather components after adhesive application. This ensures improved bonding strength, enhanced appearance, and superior product quality.

Built with a heated roller system and adjustable pressure controls, the Hot Roller Press delivers consistent thermal pressing performance across a wide range of materials. The machine features both automatic continuous operation and manual pedal-controlled operation, providing flexibility for different production requirements. Its stainless-steel safety front cover, compact design, and reliable performance make it an ideal solution for footwear manufacturers seeking efficient and high-quality pressing operations.

₹ 0.00

Machine type
- PR 1067/T/300
- PR 1067/H100
- PR 1067/200
- PR 1067/T/H300
- Welt Forming

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Proper bonding and component flattening are critical for achieving high-quality footwear and leather products. The PR 1067/T/300 Hot Roller Press applies controlled heat and pressure to bonded materials, removing trapped air and ensuring uniform adhesion across the component surface.

The heated roller system also helps flatten leather components, improving their appearance and preparing them for subsequent manufacturing operations. With adjustable pressure settings and flexible operating modes, the machine offers manufacturers greater process control while maintaining consistent production quality. Its compact footprint and industrial-grade construction make it suitable for both small and large-scale footwear manufacturing facilities.

Designed for hot pressing and flattening leather components
Heated roller system for enhanced bonding performance
Suitable for pressing upper and lining materials after bonding
Adjustable roller pressure
300 mm roller width
Stainless steel safety front cover
Automatic continuous operation mode
Manual pedal-operated mode available
Removes air pockets and air gaps effectively
Improves component flatness and appearance
Compact and space-saving design
Heavy-duty industrial construction

Parameter	Benefit
Heated Roller Technology	Improves bonding strength and consistency
Adjustable Pressure Control	Accommodates different materials and applications
300 mm Roller Width	Suitable for a wide range of footwear components
Component Flattening Capability	Enhances product appearance and finish
Air Pocket Removal	Improves adhesive contact and durability
Automatic Operation	Increases production efficiency
Manual Control Option	Provides operational flexibility
Stainless Steel Safety Cover	Enhances operator safety
Compact Design	Saves valuable floor space
Industrial Construction	Ensures long-term reliability and performance

Parameter	PR 1067/H100	PR 1067/H200	PR 1067/T/300	PR 1067/T/H300	PR 1067/H100 (Welt Machine)
Voltage	415 V AC	415 V AC	415 V AC	415 V AC	415 V AC
Power	0.7 kW	1.2 kW	1.2 kW	1.2 kW	0.7 kW
Machine Weight	40 kg	80 kg	40 kg	40 kg	40 kg
Gross Weight	60 kg	120 kg	60 kg	60 kg	60 kg
Machine Dimensions (L × W × H)	350 × 500 × 405 mm	660 × 510 × 1006 mm	530 × 510 × 405 mm	660 × 510 × 1006 mm	350 × 500 × 405 mm
Packing Dimensions (L × W × H)	500 × 650 × 565 mm	810 × 660 × 1156 mm	680 × 660 × 555 mm	810 × 660 × 1156 mm	500 × 650 × 565 mm
Roller Width	100 mm	200 mm	300 mm	300 mm	100 mm
Speed Control	Standard	Variable Frequency Drive (VFD)	Standard	Variable Frequency Drive (VFD)	Standard
Temperature Control	Standard	Digital Temperature Controller	Standard	Digital Temperature Controller	Standard
Roller Heating	Standard	Top & Bottom Heated Rollers	Standard	Top & Bottom Heated Rollers	Standard

The Hot Roller Press is commonly used for:

Footwear upper manufacturing
Upper and lining bonding operations
Leather component flattening
Safety shoe production
Sports shoe manufacturing
Formal footwear production
Casual footwear manufacturing
Sandal manufacturing
Leather goods production
Handbag manufacturing
Adhesive bonding applications
General footwear assembly lines

Achieving strong bonding and smooth component finishing is essential for producing high-quality footwear. The Hot Roller Press combines heat and pressure to deliver superior bonding performance while simultaneously flattening leather components for a professional finish.

Its heated roller technology, adjustable pressure system, and flexible operating modes provide manufacturers with greater process control and improved production efficiency. Whether used for footwear uppers, leather components, or bonded assemblies, the offers reliable performance, consistent results, and long-term operational value.

Specifications

Machine type

PR 1067/T/300, PR 1067/H100, PR 1067/200, PR 1067/T/H300, Welt Forming
